| Coil Required | Material | PPGI GI AL |
| Width | 914/925/1000/1200/1220/1250mm | |
| Thickness | 0.3-0.7mm as custom order | |
| Power Required | Power | 380V 50Hz 3 Phase, 220V, 415V available |
| Main Motor | 5.5KW Siemens Brand | |
| Cutting Motor | 4KW Siemens Brand | |
| Machine | Support Frame | 40H Steel |
| Forming Stations | 14 Rows as profile require | |
| Structure | 18-20mm | |
| Shaft | 75mm Solid shaft | |
| Roller | 45# Steel with hear treatment | |
| Chain | 1.2inch | |
| Bearings | Standard as custom order | |
| Speed | 15-3-m/min | |
| Electric Components | Delta and Siemens brand | |
| Size | 7.5*1.3*1.6M | |
| Weight | 4T |

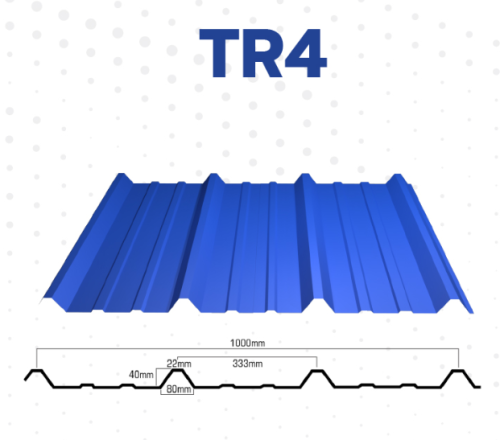

Applications of
This series of the profile is designed to be economical roofing panels for residential, industrial, andcommercial projects.
0.30mm and a maximum of 0.7mm gives more resilience to damage.
