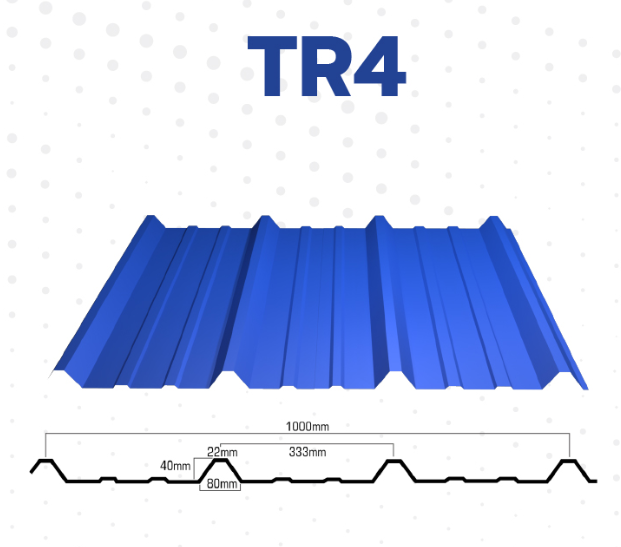

Maquina PARA Fabricar Planchas Zinc Acanalado Calaminon Tr4 Aluzinc

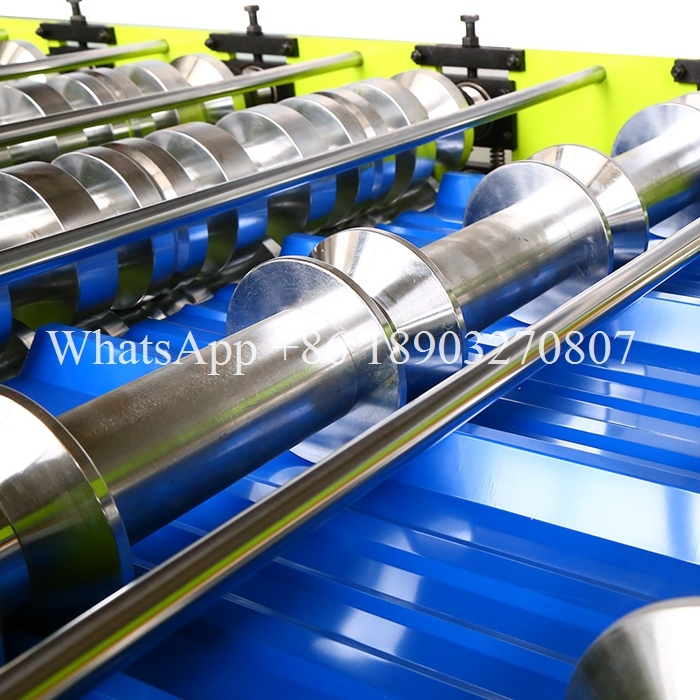

People use Roofing Sheet Machine, Such as PV4 Metal Roof Panel Roll Forming Machine, Trapezoidal Sheet Roll Forming Machine to produce metal sheet for industrial, commercial and residential roof cladding. Although there are numerous profiles of roofing sheet, the process of forming is the same. Coils (GI coils, PPGI coils, GL coils, PPGL coils, etc) go through decoiling, roll forming, cutting and then come out the desired roof products .
Maquina PARA Fabricar Planchas Zinc Acanalado Calaminon Tr4 Aluzinc
| maquina para fabricar planchas zinc acanalado | ||
| No. | Name | Specifications |
| 1 | Suitable to process | Color alu-zinc steel coil |
| 2 | Roller | 20-22Rollers |
| 3 | Dimensions | 10.5*1.8*2.0m |
| 4 | Motor Power | 5.5Kw |
| 5 | Pump Station Motor | 4Kw,Lichao |
| 6 | Thickness of the plate | 0.3-0.8mm |
| 7 | Productivity | 10-15m/min |
| 8 | Material of the cutting blade | Cr12,Quenched treatment 58ºC-60ºC |
| 9 | Diameter of the roller | 70mm,Solid |
| 10 | Weight | 5200Kgs |
| 11 | Main structure of the machine | 400H beams |
| 12 | Processing precision | 16mm |
| 13 | Chain Wheel and Cycle Chain | 1.2 Inch |
| 14 | Voltage | 380V 50Hz 3phases or as customer's need |
| 15 | Control system | PLC control (Delta) |
| 16 | Frequency system | Delta |
| 17 | Drive mode | Motor driver |
| 18 | Touch screen | Delta |
| 19 | Rolling materials | 45# forging steel with chromium plate |
| 20 | Length Tolerance | ±2mm |
| 21 | Machine Language | Chinese/English/Spanish |
Application of Roof Panel Roll Forming Machine
Besides of Roof Tile Forming Machine, We also have IBR sheet forming machine, corrugated sheet forming machine, Ridge cap forming machine , Floor deck forming machine etc . Welcome to call us for more information .
