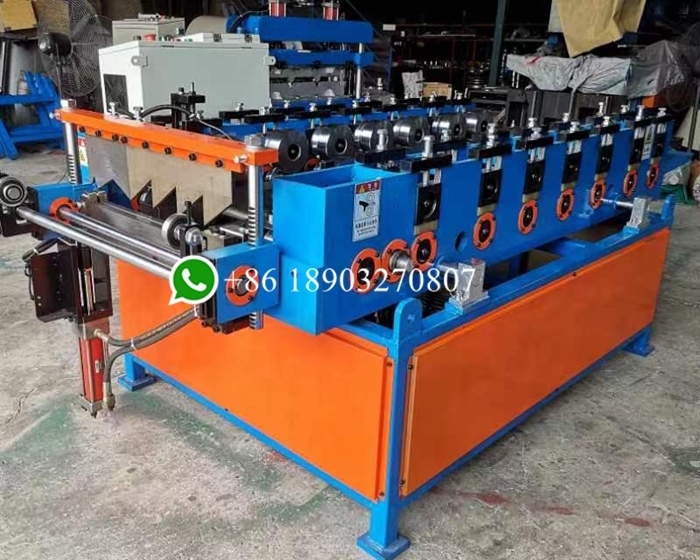

Clip lock Portable Standing Seam Roof Panel Forming Machine

Our portable standing seam roll forming machine can be used at worksite,adjustable width,one inch or 1.5inch depth.With control box,and hmi,work in auto and manual way.
Description Review
Description
The Portable Standing Seam Roofing Panel Roll Former is used to make unexposed screw roof sheet.
Firstly, the standing seam roof panels have a concealed fixing or seaming method by turning up the edges of two adjacent panels, and then folding or interlocking them.  In this way, the seaming or fixing parts are invisible,  and therefore sometimes we called the panels concealed fixing panels!
The material thickness varies from 0.4-0.8mm,in some places such as USA,they use copper as raw material. But some other concealed fix standing seam roofing, likebemo roof sheet are thicker from 0.8-1.2mm.



Machine Components

With feeding material guide, body frame made from H400(Thickness is 13mm) type steel by welding
Side wall thickness: Q235 t18mm ;
Rollers manufactured from high quality 40Cr Steel,CNC lathes, heat treatment,hard Chrome Coated.
Shafts Diameter=ф80mm,precision machined
Gear/Sprocket driving,about 14-step to form
Main Motor=7.5KW, Frequency speed control
Sprocket:18 tooth;Sliding block:130*140mm;Bolt and nut: international standard 8.8


TO AVOID OIL CANNING,WE CAN MAKE STIFFENING RIB AS YOUR REQUEST.
Portable Standing Seam Forming Machine Application


We have full range of Metal Sheet Roll Forming Machine to produce Roof Panels, Wall Cladding Sheets, Step Tiles with different types. Such as: Standing seamming Panel. IBR sheeting, Corrugated Sheets. Trapezoidal Roof Panel.  Roof Ridge Capping, Russian Type R17 R45. Metal Glazed Tile 1000, Clip Lock 400 etc. Welcome your inquiry anytime .
