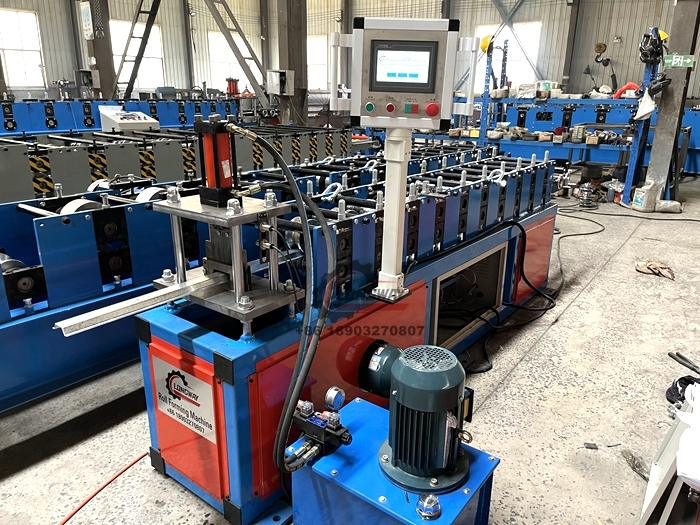

Furring channel Metalcon Omega Cielo Forming Machine

Description Review

Description

Furring channel Metalcon Omega Cielo Forming Machine is popular sell in many countries, we sell lots of such machine to Chile , Peru, Iraq, Egypt, UAE, Chile, Zambia, etc. This machine we make C channel at different sizes , with punching holes.

Product thickness common between 0.3-0.6 mm, it use for Ceiling, work with Angle bead machine, U channel machine, Omega profile machine and T grid machine

Customized is welcome, tell me your need size and thickness, we provide you satisfied machine .

Here are some drawing profiles for your reference:

Processing Flow

Uncoiling → Feeding Material Into Machine →Roll Forming → Servo Fly Cutting →Products Receiving
longway roll forming machine

A Especificaciones de la hoja de bobina

1.	Tipo de bobina	Acero galvanizado, Aluminio
2.	Ancho	como perfil
3.	Rango de espesor	0.5-0.6 mm
4.	Estrés de rendimiento(mm)	Q235

B Especificaciones de la máquina

1	Requisitos de energía	Voltaje eléctrico	380v/3ph/50hz
		motor principal	7.5kw
		Poder de corte	5.5kw
2	Velocidad de formación		30-45m/min
3	Estaciones de formación		12 filas
4	Espesor de la estructura		25mm
5	Modo conductor		Engranaje
6	Formando el diámetro del eje		50mm eje macizo
7	Material del rodillo		GCr12MoV
8	tipo de corte		Corte sin parar
9	Sistema de control		PLC Delta
10	Pantalla		Pantalla táctil
11	Dimensión (aprox.)		4.9m×0.85m×1.3m
12	Peso total (aproximado)		3.2T

Each components can be designed as custom require . Longway roll forming machine provides OEM/ODM for all customers
stud and track roll forming machine

Non-composite conditions are common in all structures. When the gypsum board stops at the ceiling level, but the stud continues to the deck, it is a non-composite condition. Wall framing with Deflection Track, Resilient Channel (RC) or Sound Clips is a non-composite design since the screws attaching the gypsum board are not directly attached to the framing or top track. While there may be advantages to contacting Technical Services or a Design Professional, many conditions can be covered by limiting heights tables shown in this catalog .
