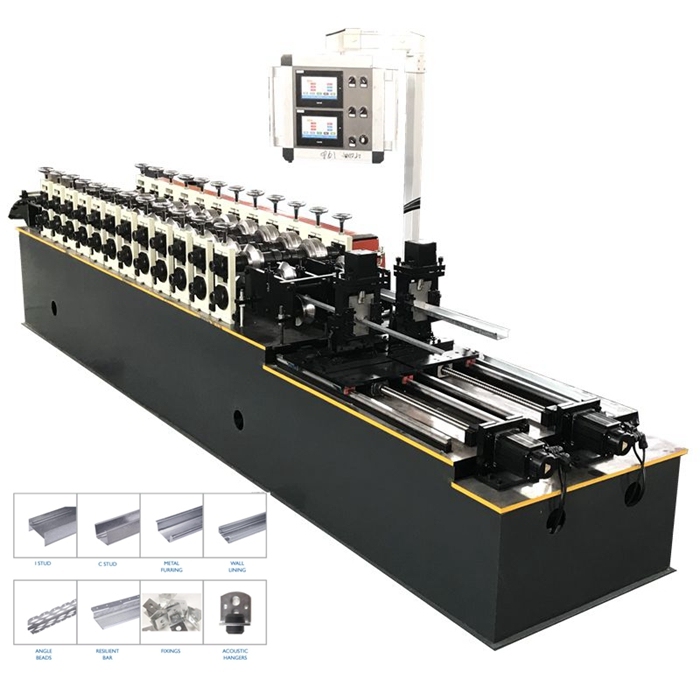

Two in one Angle and Omega profile roll forming machine
We engaged to design and manufactured Customized Profile Roll Forming Machine as buyers’ requirements.We offer One-Stop service for customer.
1.Length of the main part：about 5000*700*1300
2.Weight of main part：3 tons
3.Voltage：380V/50HZ3Phase (as customer`s request)
4.Roller fixer：guide column
5.Frame：steel plate welded/ Memorial arch frame type
6.Frame thickness：25mm
7.Drive mode：gear
8.Material of rollers：GCr12MoV
9.Material of shafts：45# steel with tempering
10.Diameter of shafts：φ50mm
11.Number of rollers：10 rollers
12.Main power：7.5kw
We have series kinds of stud and track machines for different requirements. Such as Metal track forming machine , Corner bead roll forming machine ,Roof Ceiling Forming Machine , Hat section forming machine etc . Contact us now for more information.
